High Pressure Centre Sticks
26 Jun 2013
Yes
-





We have a range of centre sticks to enable samples to be put on both the neutron and muon beamlines whilst under pressure.

No
​​High Pressure Centre Stick​


If you have any questions about this equipment or you think you may want to use one on your experiment contact the Pressure and Furnaces team, or the respective instrument scientist.



Centre Stick Description Working parameters Number of
High pressure Centre stick 100mm High pressure Centre stick for use in a 100mm cryostat or top loading CCR. 0 to 7,000 Bar 4

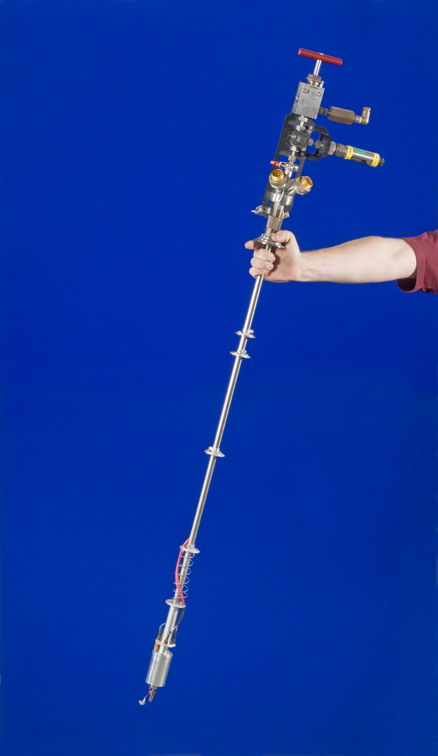

High pressure Centre stick 50mm High pressure Centre stick for use in a 50mm cryostat or top loading CCR. 0 to 7,000 Bar 3
High pressure Centre stick Hydrogen. High pressure hydrogen Centre stick for use in a 50mm cryostat or top loading CCR. 0 to 7,000 Bar 1

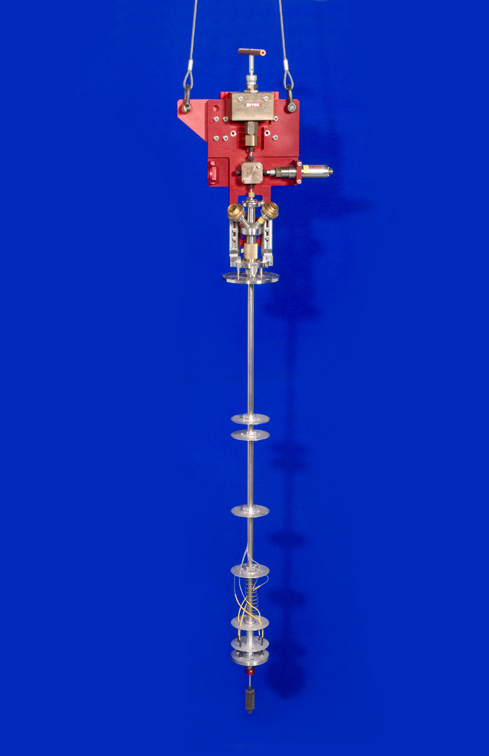

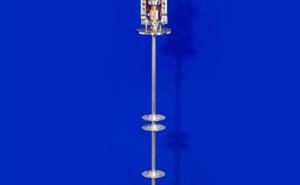

JRA High Pressure centre stick High pressure hydrogen Centre stick for use in a 100mm cryostat or top loading CCR. 0 to 10,000 Bar 2
Riken High Pressure centre stick. High pressure Centre stick for use in a 50mm cryostat or top loading CCR. 0 to 10,000 Bar 1
Hifi High Pressure centre stick. High pressure Centre stick for use in a 50mm cryostat or top loading CCR. 0 to 10,000 Bar 1
Contact:
