At ISIS we have a range of both automatic and hand operated intensifiers and the necesary pressure cells to enable high pressure studies of samples. We have Standard intensifiers and cells for experiments involving Helium but also the ability to compress Hydrogen up to 3Kbar using special materials resistant to hydrogen embrittlement.
If you have any questions about this equipment or you think you may want to use one on your experiment contact the Pressure and Furnaces team, or the respective instrument scientist.
Automatic Intensifiers:
|
Automatic Intensifiers
|
Description
|
Operating Pressure (Bar)
|
Number of
|
|

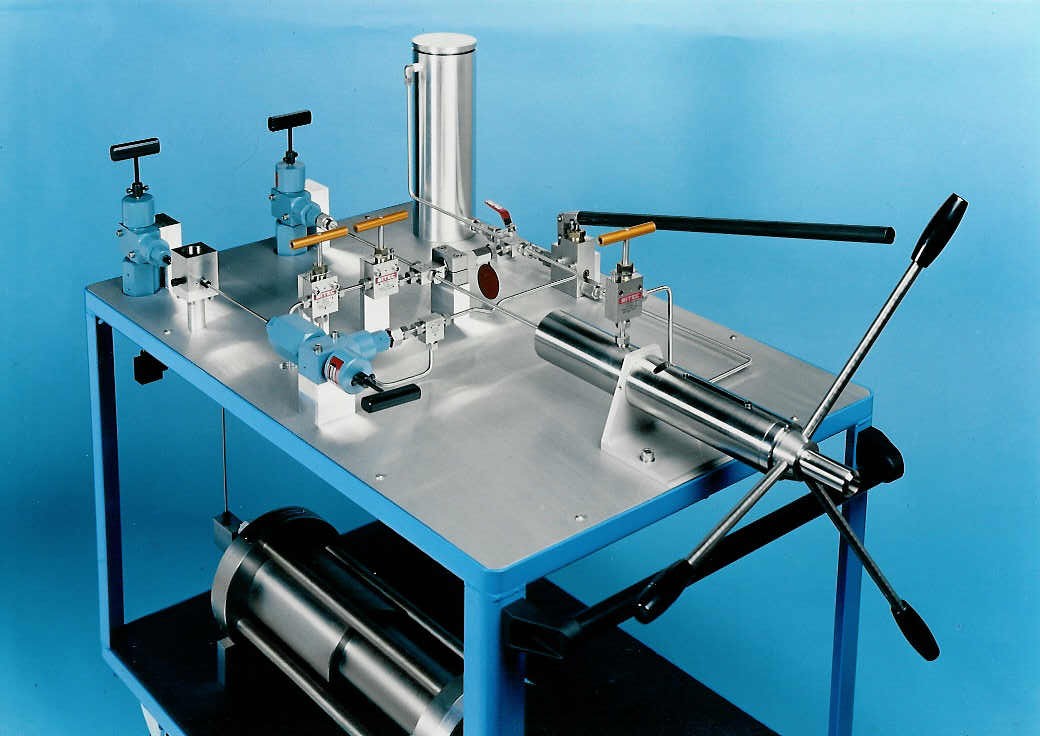

Oil Intensifier system
|
High Pressure Oil rig. |
0 to 14,000 |
1 |
|

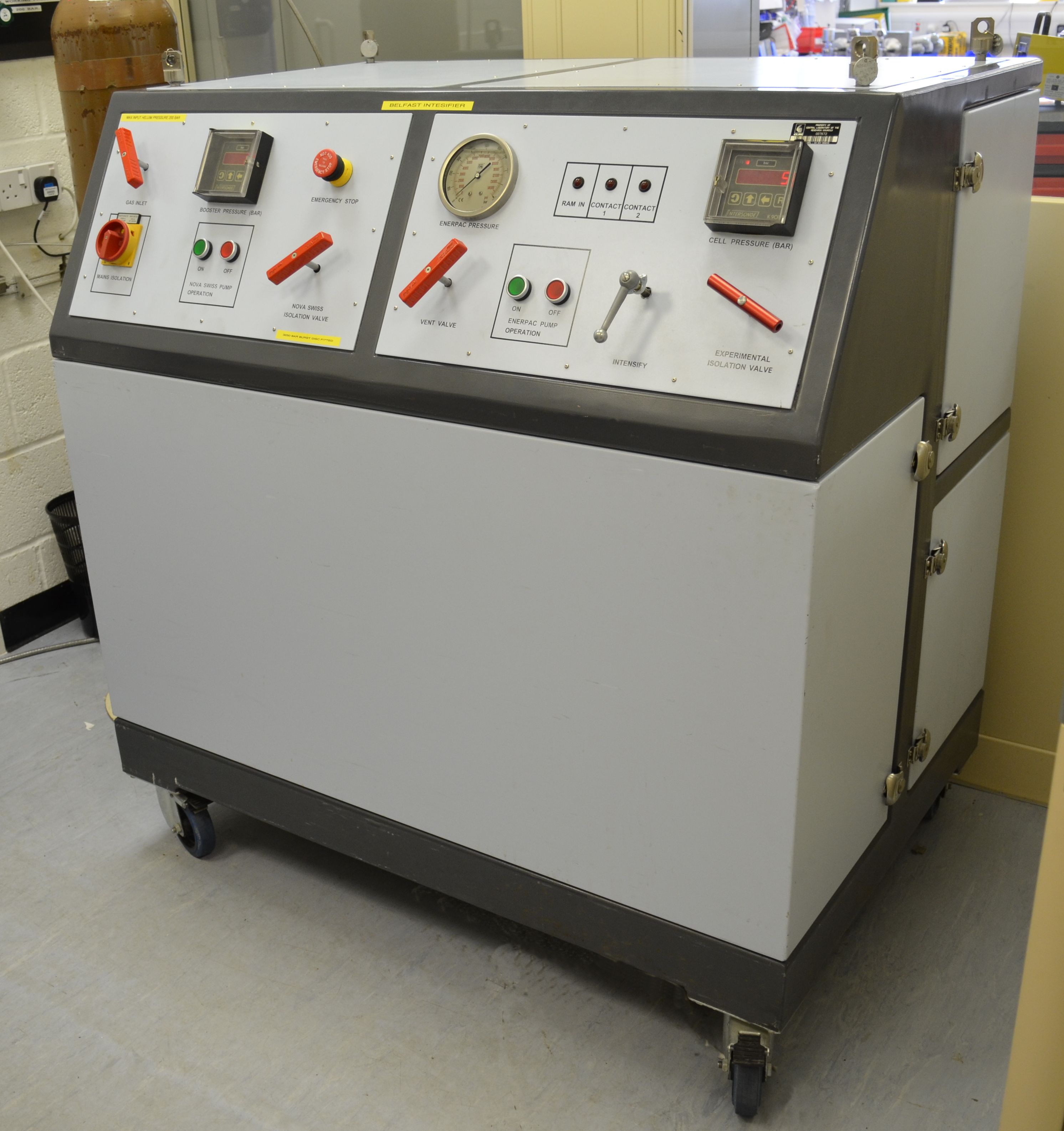

Belfast Intensifier system
|
High Pressure Helium gas rig. |
0 to 10,000 |
1 |
|

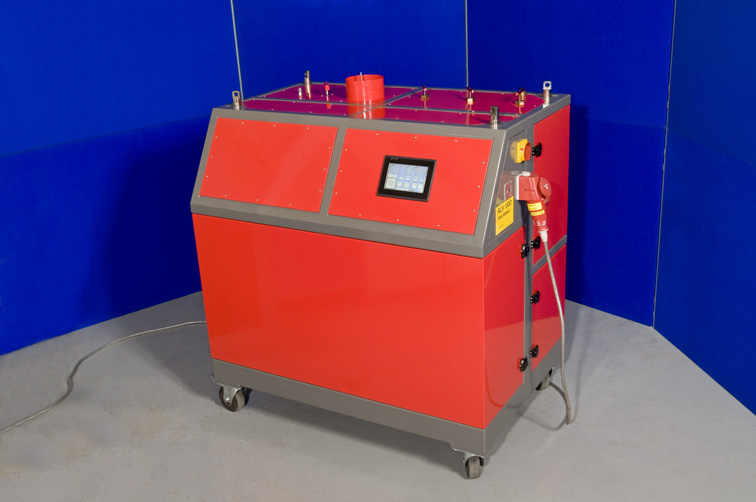

Hydrogen Intensifier
|
Commissioning: A Hydrogen Intensifier |
0 to 10,000 |
1 |
| Automated Intensifier system |
High Pressure automated Helium gas rig. |
0 to 10,000 |
1 |
| SXD Hand Intensifier system |
High Pressure Helium gas rig. |
0 to 7,000 |
1 |
| Riken Automated intensifier system |
High Pressure automated Helium gas rig. |
0 to 7,000 |
1 |
|

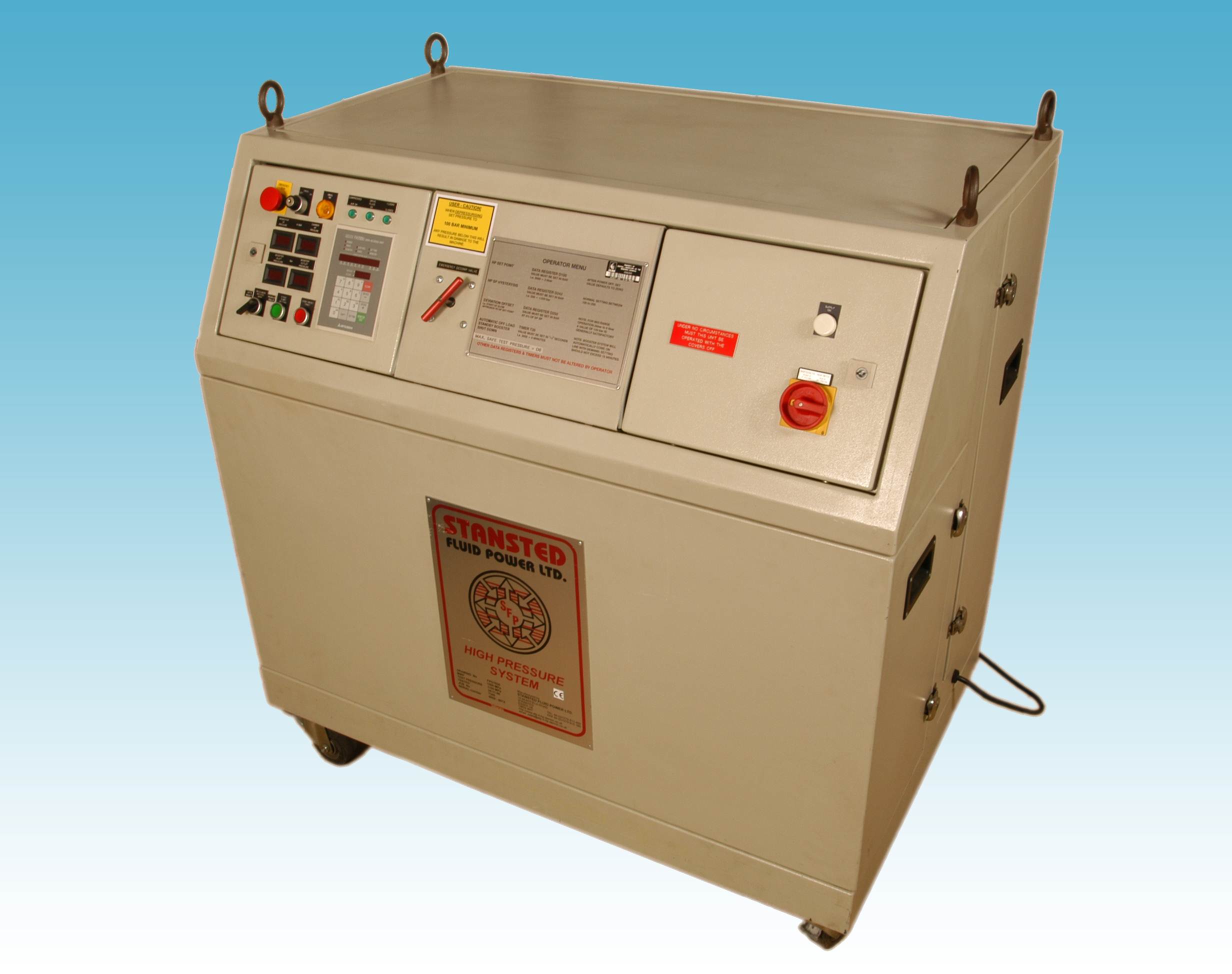

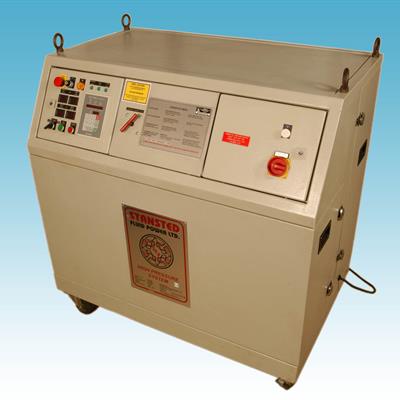

Stansted Intensifier system
|
High Pressure automated Helium gas rig. |
0 to 6,000 |
1 |
Hand rigs (Gas and Water):
|
Hand Intensifier
|
Description
|
Operating Pressure (Bar)
|
Number of
|
|

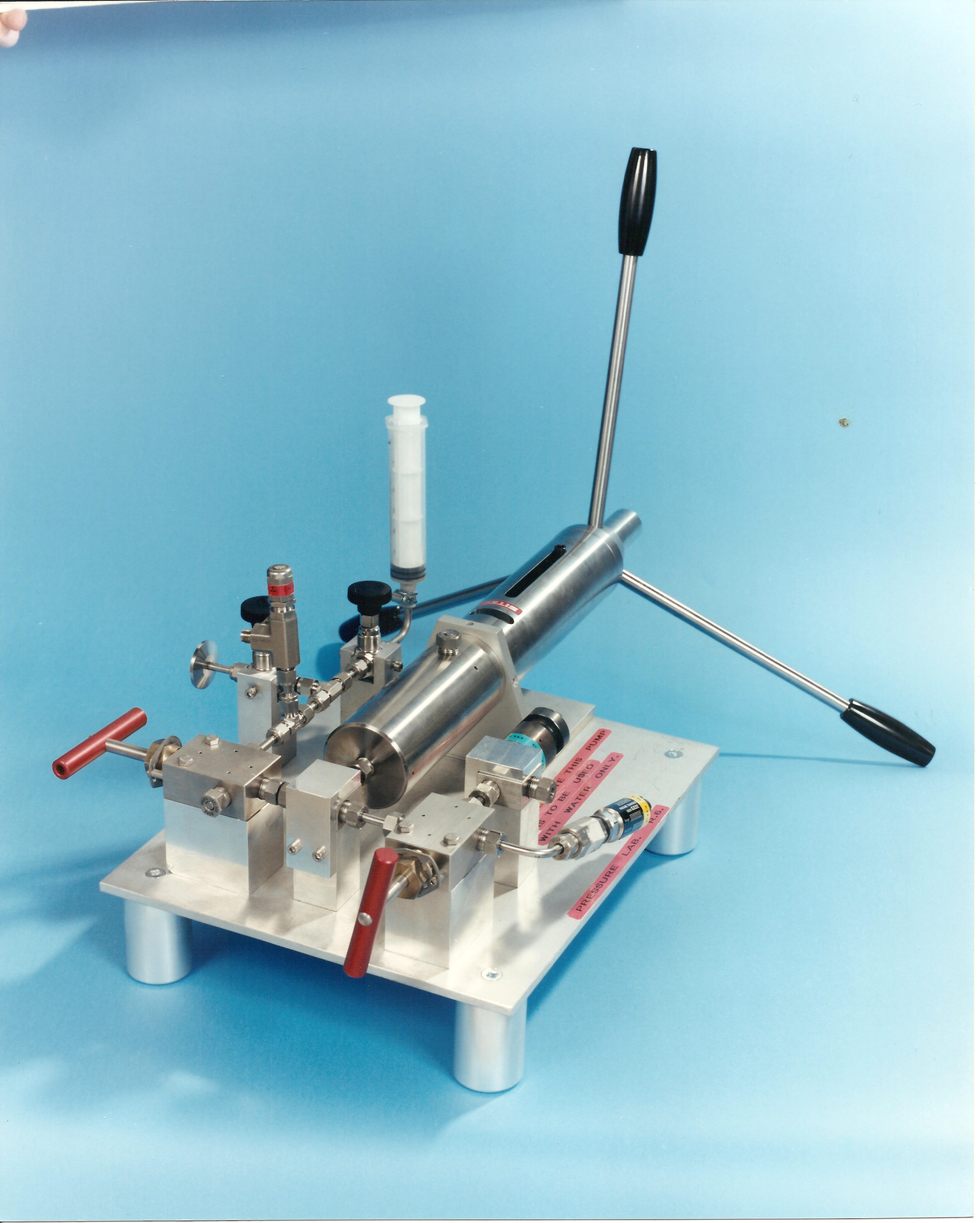

7Kbar (Water)
|
High Pressure water rig. |
0 to 7,000 |
1 |
|

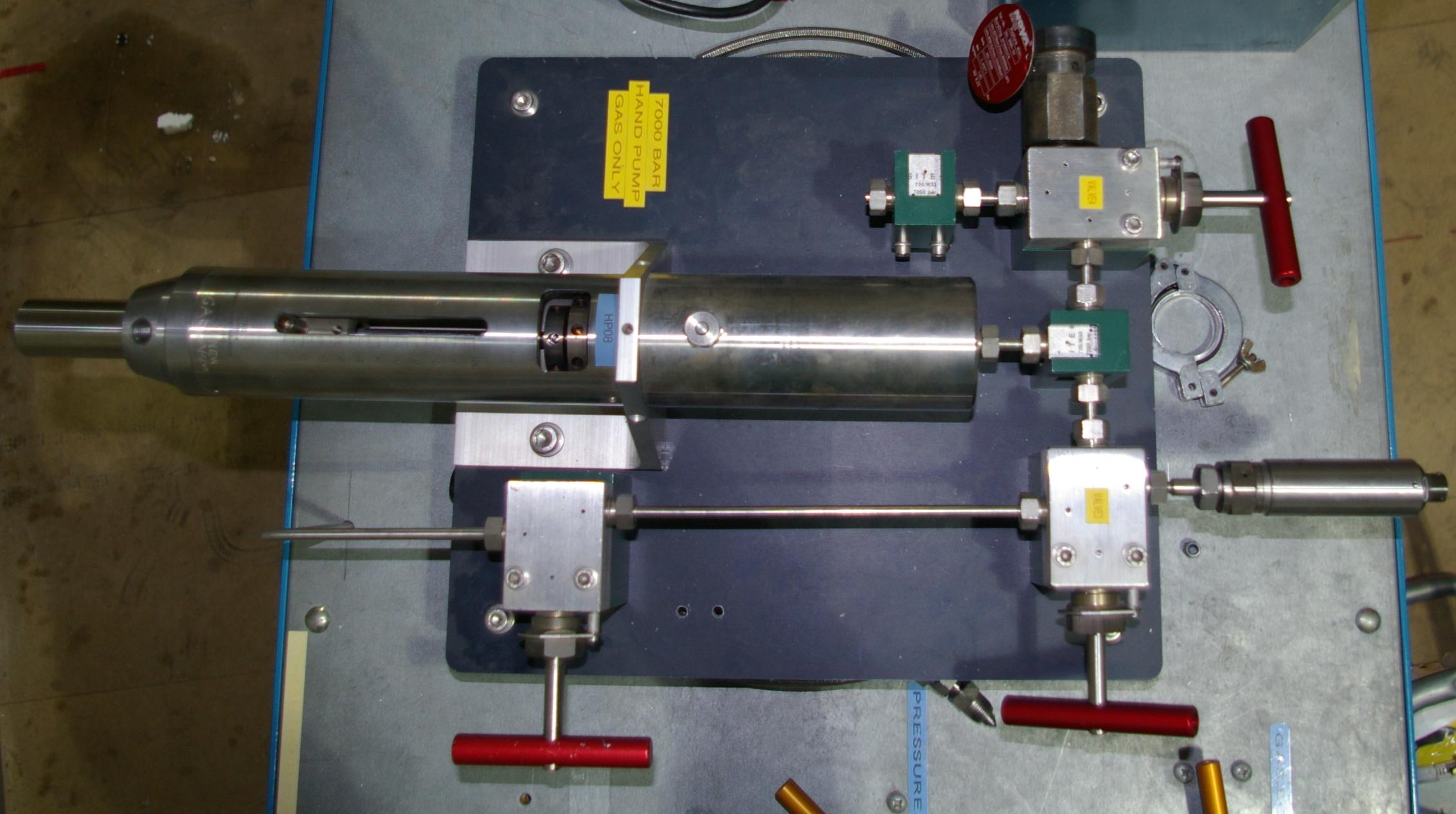

7Kbar
|
High Pressure Helium gas rig. |
0 to 7,000 |
1 |
| Helium Hand intensifier system. |
High Pressure Helium gas rig. |
0 to 7,000 |
1 |
|

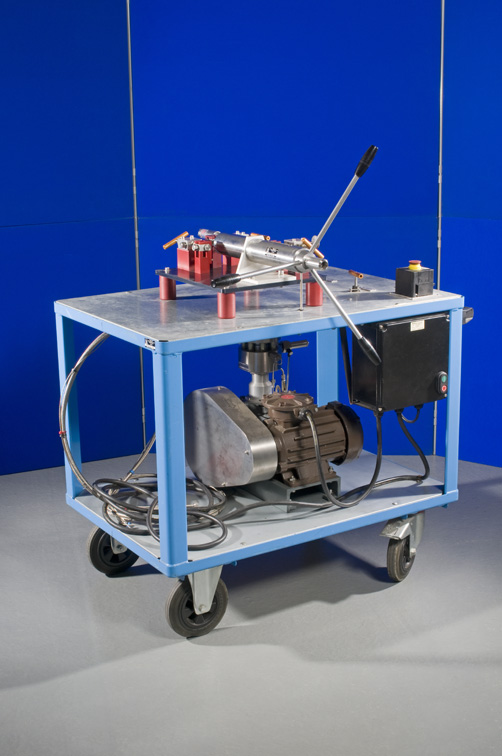

Hydrogen Hand intensifier system.
|
High Pressure Hydrogen gas rig. |
0 to 3,000 |
1 |
|

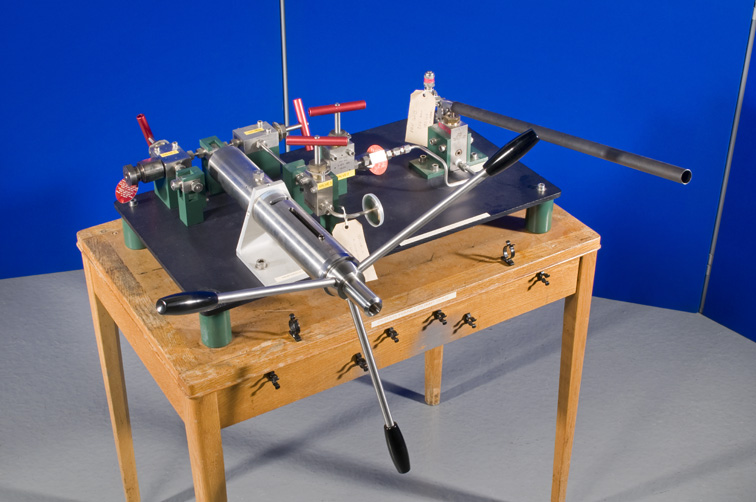

2Kbar
|
High Pressure Helium gas rig. |
0 to 2,000 |
1 |
|

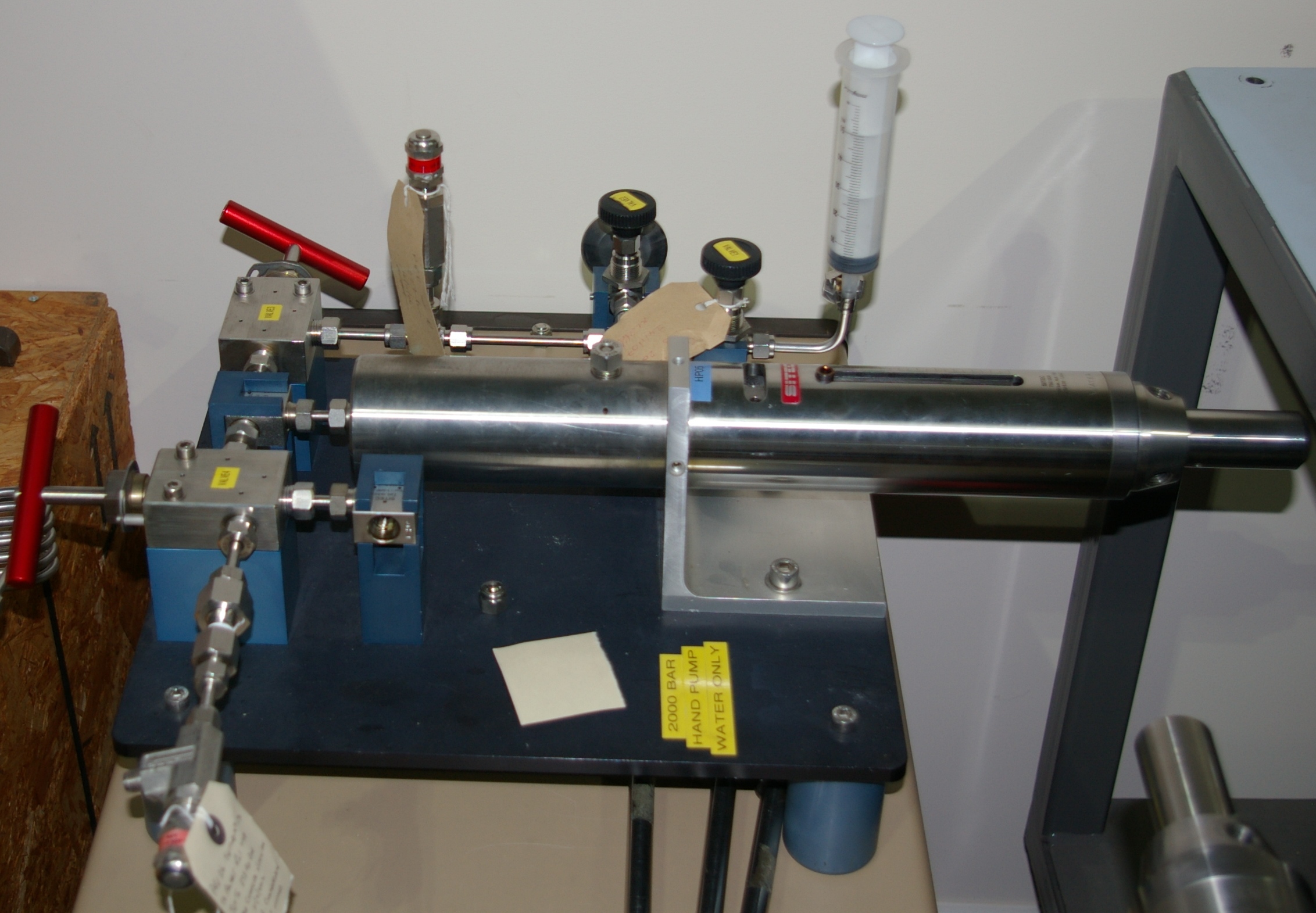

2Kbar (Water)
|
High Pressure water rig. |
0 to 2,000 |
1 |
|
2Kbar
|
High Pressure Helium gas rig. |
0 to 2,000 |
1 |
|
2Kbar
|
High Pressure Helium gas rig. |
0 to 2,000 |
1 |
| 600bar |
High Pressure Helium gas rig. |
0 to 600 |
1 |
