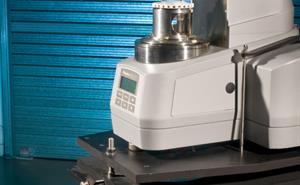

Offline the instrument may be used with parallel plate, cone-and-plate, or Couette measuring geometries, but Rheo-SANS experiments can only be performed with a special Searle-Couette (rotating stator) measuring geometry because of the relatively large diameter of the collimated neutron beam.
We have SANS Couette cells manufactured in synthetic quartz and Grade-V Titanium depending on the temperature requirements of the experiment.
Key Info:
Custom-built cylinders for SANS & SAXS
SANS: concentric cylinder
SAXS: concentric cylinder & cone-&-plate
| Parameter: | Value: |
| force range | 0.01 – 50 mN with 2 mNresolution |
| torque range | 0.02 mNm – 230 mNmwith 0.001 mNm resolution |
| speed (controlled shear stress) | 10-7 – 3000 rpm |
| speed (controlled shear rate) | 10-8 – 3000 rpm |
| oscillatory frequency | 10-6 – 100 Hz |
| sample temperature | -50 – +200 °C |
