​Overv​iew

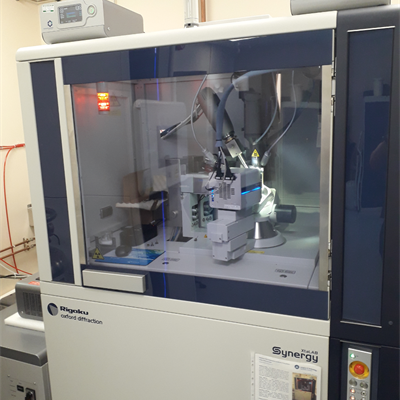

The Rigaku XtaLAB Synergy-S instrument is a fast single-crystal diffractometer and is available for sample screening, structure analysis and other crystallographic experiments on organic, inorganic and organometallic crystal samples.

Common Research Applications

• Chemical crystallography

• Polymorphs

• Single crystal X-ray diffraction

• Small molecule crystallography


​​

Specifications

• Single or dual microfocus sealed tube X-ray source with Cu and Mo targets

• High angular resolution 4-circle kappa goniometer allowing data collection scan speeds of up to 10 °/sec


• Interchangeable beam stop (High Pressure Mode)

• Variable divergent slits

• 2D detector


• Video microscope for sample mounting and alignment​


Software

The data collection and data processing software CrysAlisPro is used for single crystal analysis which can be operated under fully automatic, semi-automatic or manual control. CrysAlisPro combines automated crystal screening, the fastest and most accurate strategy software available, concurrent data reduction and automatic small molecule structure solution. Also, integrated within CrysAlisPro, AutoChem offers fast, fully automatic structure solution and refinement during data collection.​

​

Measurement Options

• Cryostream 800+ (80 – 500 K)

• N-Helix (28 – 300 K)

• Pressure Cell
