Troughs and Water Baths
25 Jul 2013
Yes
-







No
Water Bath 13 LOQ


Multi-position, temperature controlled troughs are available for air-liquid interface experiments. There are several Langmuir troughs for beamline or off-line use. A considerable number of water baths, or temperature circulators, are available. Although most are dedicated to particular instruments there are also a number of unassigned water baths.​

For further details please select the relevant link in the table below. If you think you may want to use any trough or water bath for your experiment please contact the sample environment team.

Trough

Type of measurement

Temperature range

Number available

Instrument

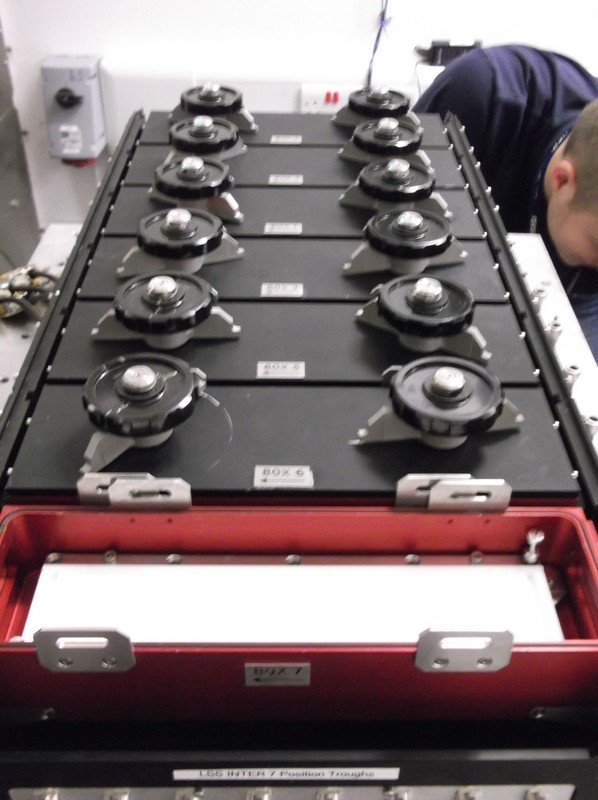

7 position liquid troughs


Air/liquid interface;

Mounted on height stage

Different atmospheres

RT - 80°C

1

INTER

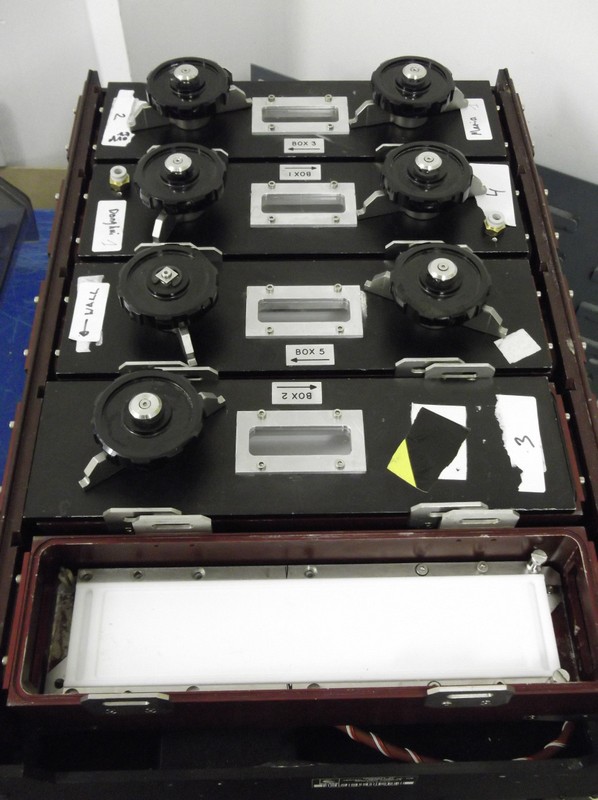

5 position liquid troughs x2


Air/liquid interface;

Mounted on height stage

Laser alignment

RT - 80°C

2

CRISP / SURF

NIMA Langmuir Troughs x3

Three different sizes; one for offline work.

-50 to 200°C

3

INTER / OFFSPEC / CRISP / SURF / BIO

Liquid trough

0.3T in magnetic field

(GMW 5403 magnet)



1

POLREF / OFFSPEC

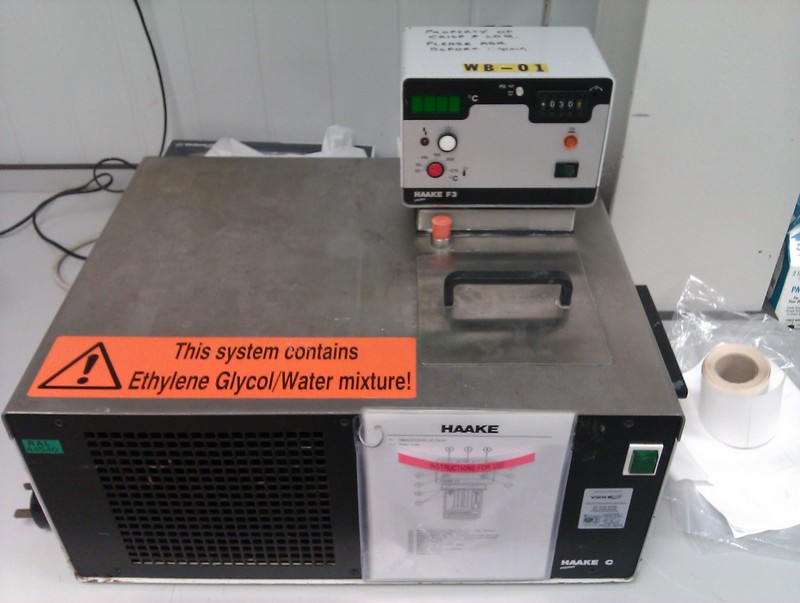

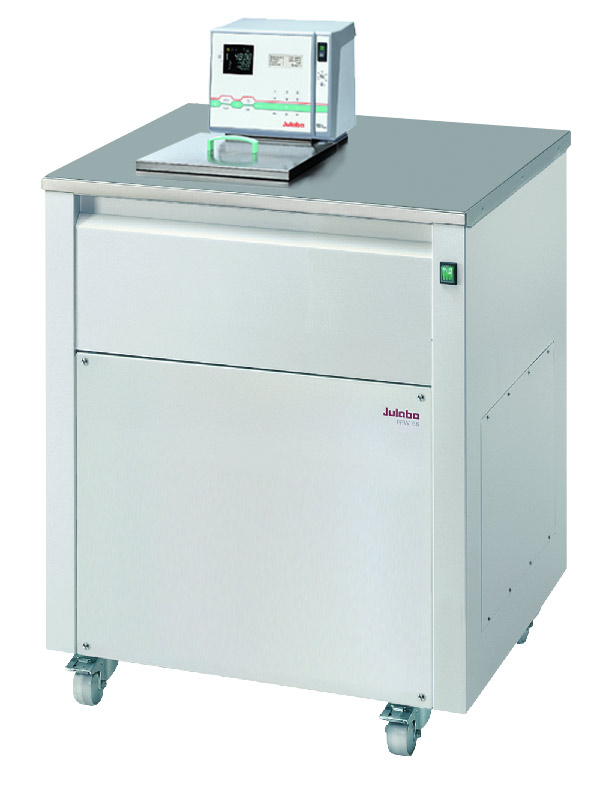

Water Baths

5kW heating/cooling;

Bench top/floor standing

-40 to 90ºC

13

Various
